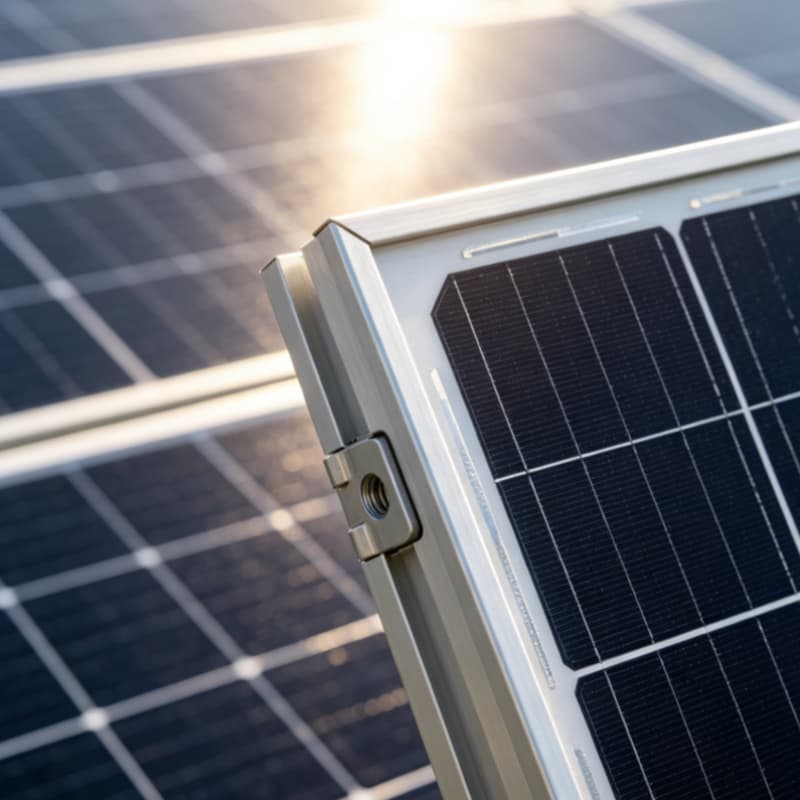

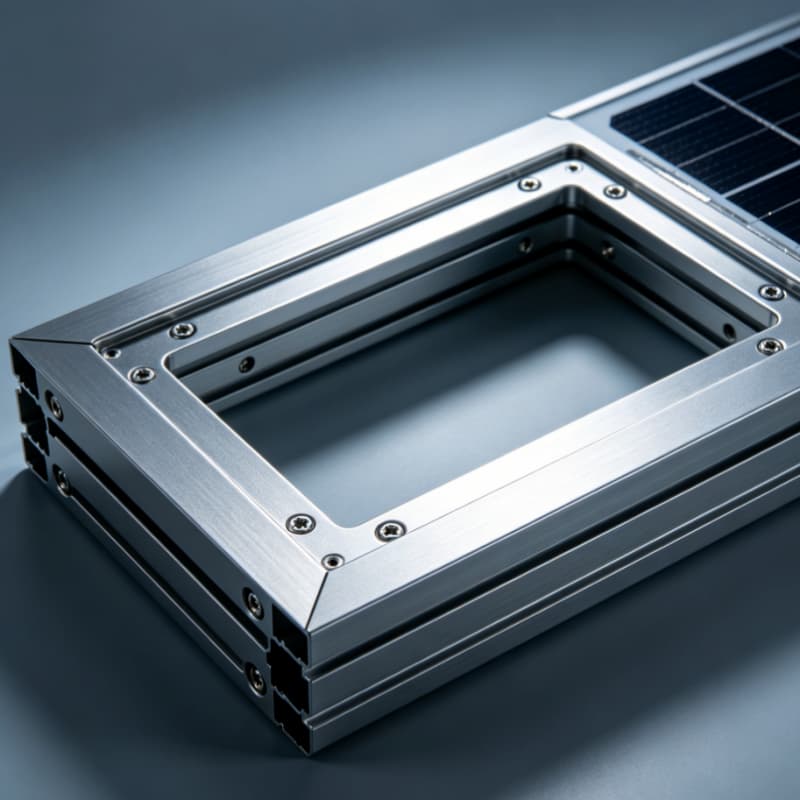

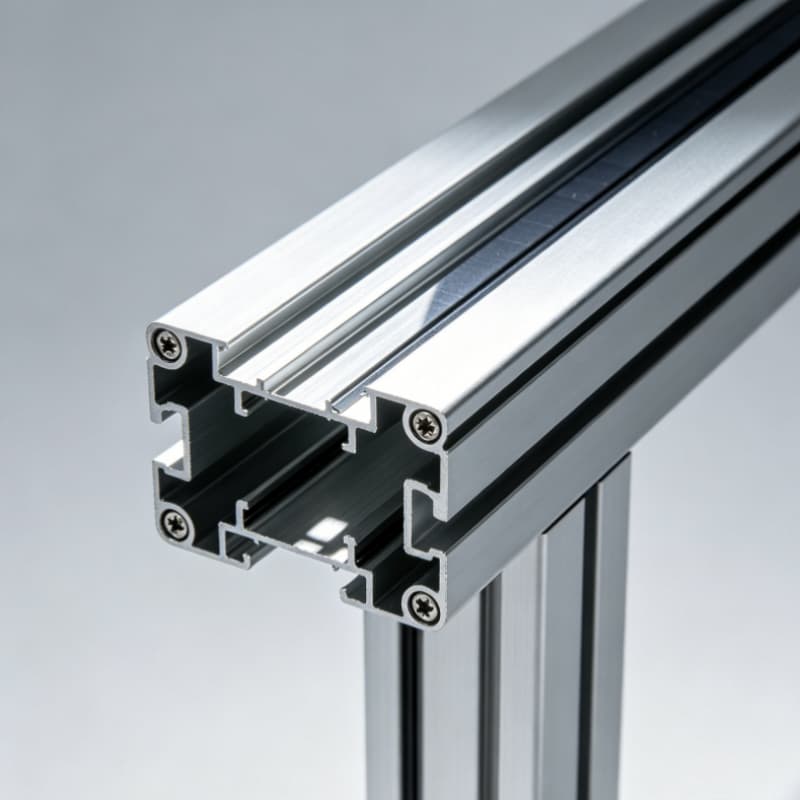

The frame of a solar panel does far more than hold the glass together — it is the first line of defense against environmental stress, mechanical load, and premature module failure. Our solar aluminum frames are engineered to provide robust protection for photovoltaic modules throughout their entire 25+ year operational life. From corrosive coastal environments to heavy snow-load regions, our frames deliver uncompromising durability and performance.
Why Frame Quality Matters:
A high-quality aluminum frame prevents:
Glass Micro-Cracks: Caused by thermal expansion mismatch or mechanical stress — our frames provide the optimal balance of rigidity and flexibility to minimize this risk.
Moisture Ingress: Precision sealing surfaces and consistent corner joints prevent water infiltration that can degrade EVA encapsulation and cause potential-induced degradation (PID).
Installation Damage: The frame's structural integrity protects cells and glass during handling, transport, and field installation.
Corrosion Failures: Our anodized or powder-coated surfaces resist salt spray, UV radiation, acid rain, and industrial pollutants for decades.
Long-Term Performance Guarantee:
Test Standard Our Performance
Salt Spray Corrosion ASTM B117 / IEC 61701 ≥ 1,000 hours without significant corrosion
UV Aging Resistance ISO 4892 / IEC 61215 No cracking, chalking, or delamination after 3,000+ hours
Mechanical Load Test IEC 61215 Withstands 5,400 Pa positive and negative pressure
Thermal Cycling Test IEC 61215 -40°C to +85°C, 200 cycles — no frame deformation
Key Advantages:
25+ Year Design Life: Matches or exceeds the warranty period of premium solar modules.
Superior Corrosion Protection: Anodic oxide film thickness of 10-20μm ensures long-term resistance in aggressive environments.
Edge Protection: Rounded, deburred edges prevent handling injuries and reduce stress concentrations on glass edges.

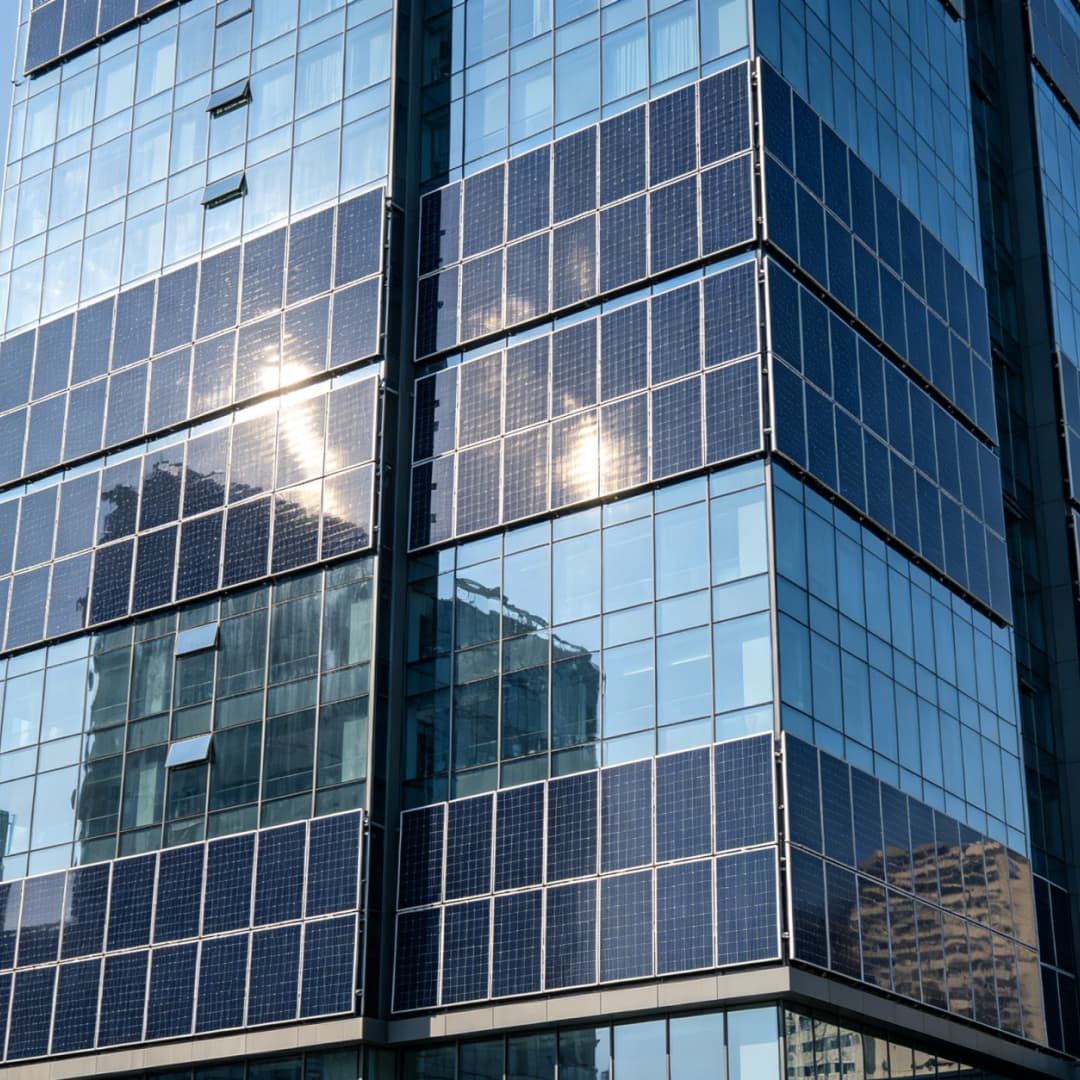

Aesthetic Consistency: Uniform color and finish enhance the visual appeal of rooftop and BIPV installations.
版本三：对比不同边框角型（45° vs 90°）及选型指南（适合技术选型页面）
Title: Solar Frame Corner Joint Selection – 45° Miter vs. 90° Butt Joint
Description:

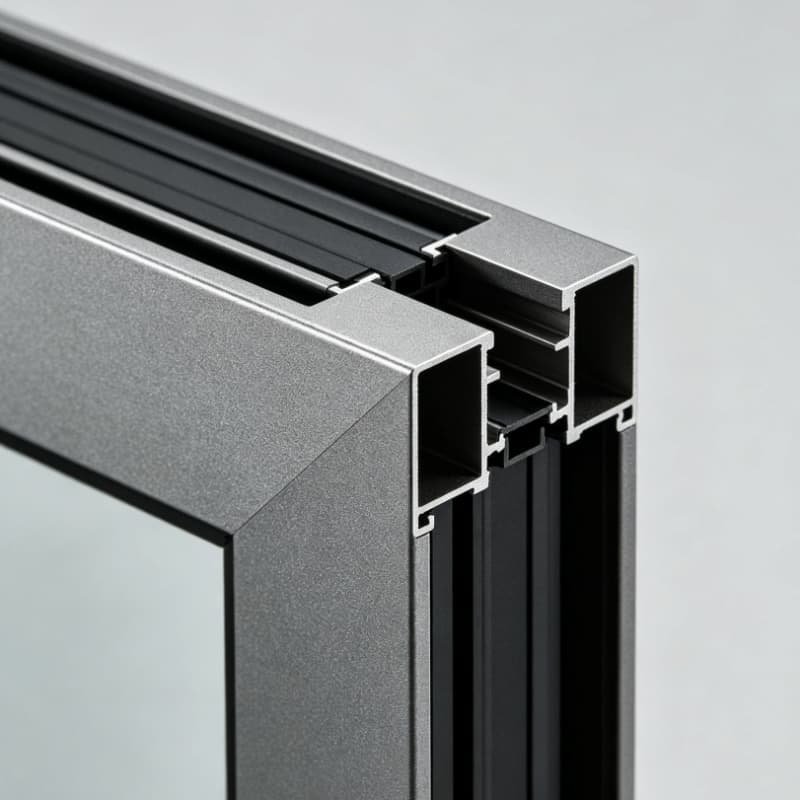

The corner joint design of a solar aluminum frame significantly impacts assembly efficiency, structural strength, and long-term reliability. We offer both 45° miter-cut and 90° butt-joint configurations, allowing you to select the optimal design for your module production process and performance requirements.
Comparison of Corner Joint Types:
Feature 45° Miter Joint 90° Butt Joint
Visual Appearance Clean, seamless look; preferred for premium modules Visible joint; functional and robust
Assembly Process Requires precise angle cutting; suitable for automated lines Simpler cutting; easier manual assembly
Structural Strength Excellent uniform stress distribution Very strong; heavy-duty performance
Sealing Performance Superior water-tight seal due to continuous corner contact Good sealing with proper adhesive application
Production Speed Slightly slower due to precision requirements Faster; ideal for high-volume production
Typical Applications Residential, BIPV, aesthetic-critical projects Utility-scale, commercial, cost-sensitive projects
Our Recommendation:
45° Miter Joint: Ideal for modules requiring premium aesthetics and maximum weather sealing, such as BIPV and residential rooftop panels.
90° Butt Joint: Recommended for high-volume utility-scale production where assembly speed and cost-efficiency are primary drivers.
Both designs are available with:
Pre-installed sealing tape or silicone application points
Alignment holes for automated assembly jigs
Customizable corner key / bracket options for added structural reinforcement
